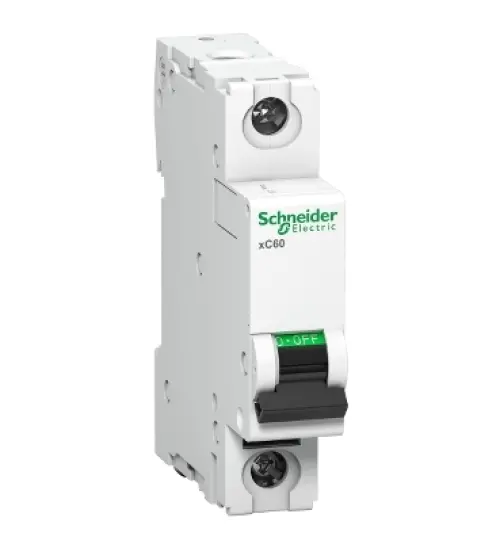

A9N1P25CIN - Miniature circuit breaker (MCB), Acti9 xC60, 1P, 25A, C curve, 15kA (IS/IEC60947-2) - Schneider Electric

Product Overview

Schneider Electric A9N1P25CIN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 25A In rated current with C tripping curve. The rated short circuit breaking capacity is up to 15kA at 240VAC conforming to IS/IEC 60947-2 standard. The MCB is suitable for isolation in the industrial sector as per IS/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail or Vertical Fishbone Busbar for modular installation. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 for the device. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. Shop genuine electrical switchgear and industrial automation products at Electribuy. Explore products from leading brands, including MCBs, MCCBs, contactors, circuit breakers, relays, and automation solutions. Check pricing and availability, and contact our team for product enquiries and assistance with your electrical or industrial requirements.
